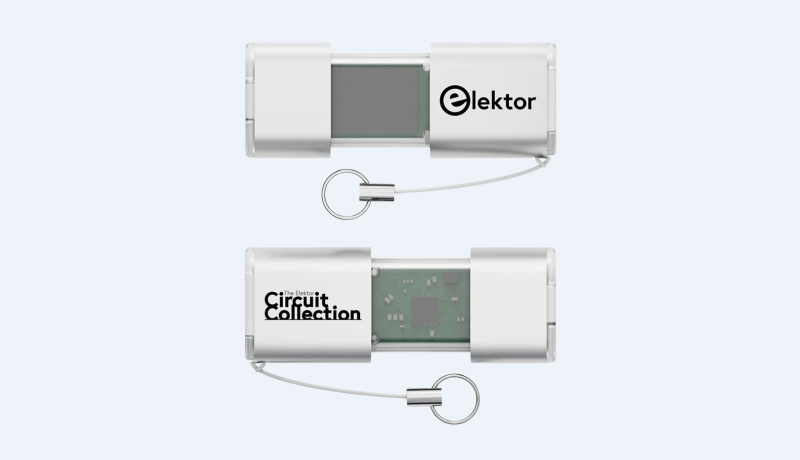

The Elektor Circuit Collection is now available! This USB stick offers over 3,500 circuit designs from all kinds of electronics, all sourced from the Elektor Summer editions. You’ll find projects for audio, video, computers, radio, and much more. It features articles from Elektor Magazine dating back to 1975 and going all the way to 2024, showcasing years of creativity. Additionally, the stick now has both USB A and USB C type connections. Plus, the search feature makes it easy to find exactly what you’re looking for, making it a great resource for sparking new ideas.

Collection Highlights

This Circuit Collection is a fantastic resource for anyone in electronics. With over 3,500 projects, you’re bound to find something that sparks your interest in this:

  • Audio Projects: For sound enthusiasts, the Solid-State Stereo Audio Switch offers a modern solution using solid-state switches instead of relays. This approach provides a clean way to switch audio signals remotely. The Microphone Preamplifier with 48V Phantom Power can elevate your recordings by processing weak output signals from sensitive microphones, allowing you to connect to a 48-V phantom power supply for those that require it.
  • House Innovation:
    Tiny Solar Supply.png
    The Tiny Solar Supply
    The Tiny Solar Supply harnesses solar power for small gadgets—perfect for eco-friendly enthusiasts. Meanwhile, the Simple Electronic Lock adds a nice touch of security, using a simple potentiometer to enter your secret code.
  • Musical Fun: Check out the T(eeny) Tiny Piano Without Moving Parts. It’s all about simplicity, featuring touch-sensitive keys for easy playing.
  • Quirky Gadgets: The Electronic Scarecrow is a fun way to keep pesky birds at bay with a friendly DIY solution. Plus, the Mole Repellent has an easy design that will help you keep moles away. And the best part? It was created for less than $10!
  • Power Solutions:
    DC-DC 3-A Power Converter.png
    DC-DC 3-A Power Converter
    The DC-DC 3-A Power Converter is great for managing power efficiently, generating different regulated voltage outputs from an input voltage supplied by a battery or fixed-voltage power supply. The Power Overload Monitor keeps your house safe by watching power levels to prevent overloads.
  • And So Much More: You’ll find cool projects like the DIY Li-Ion Battery Monitor and the classic One-Armed Bandit that can inspire your next idea.

The Elektor Circuit Collection isn’t just a collection of designs; it’s your gateway to exploring the exciting world of electronics!
