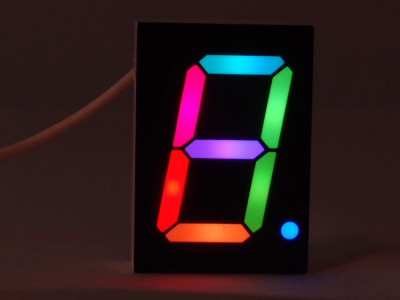

What is RGBDigit
RGBDigit is the first 7 segment display with programmable RGB LEDS, that requires only 3 wires to control them.
RGBDigit improves the possibilities and usability of displays compared to those that are currently on the market:
Standard display
The well-known classic 7-segment display.
- One pre-set colour, where the variety of colours is limited
- 10 wires on the back
Adafruit RGB 7 segment display (http://www.adafruit.com/products/1399)
Although the display looks quite good, it has some disadvantages.
- High price, the price is quite high at around €14 per display.
- 25 pins on the back, this requires a lot of solder work if you want to have for example a simple 4 digit clock, were you have to make sense of 100 wires.
- Limited Arduino platform support, a more advanced micro controller is needed that can receive all these inputs (Arduino UNO doesn’t have enough ports for just one of these digits!)

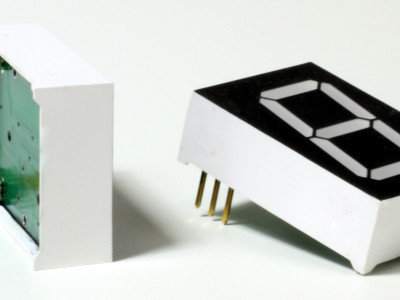

RGBDigit
The new developed RBGDigit gives a solution with the struggles that are shown above. We offer the following features:
- Arduino platform support.
- Neopixels, allowing 16.581.375 possible colours and the use of the well-developed Neopixel library https://learn.adafruit.com/adafruit-neopixel-uberguide/arduino-library By using standard neopixels the RGBDigit's can also be controlled by micro controllers other than the Arduino UNO e.g. raspberry pi.
- Minimum number of connecting pins, using only 3 pens in from your micro controller and 3 pens out that are used to connect the digits with each other.
- Cascading up to 10 RGDigits, using only 3 input wires for all the digits.
- Open source product.
Currently there is already a RGBDigit library available, written by a RGBDigit user
- Supporting products available for using the RGBDigit's.
At this moment there is a Arduino UNO shield and a Arduino Micro 4 or 6 digit backbone available.
- Hardware and demo software available via the Site or Webshop.
See RGBDigit.com/Download and RGBDigit.com/shop
- Community, make it possible that future users have a lot of fun in using/programming/applying the RGBDigit's. just like me. Maintaining/expanding a RGBDigit application list for all existing and future users.
We are of course always open to ideas or suggestions to improve the RGBDigit products.
Kind regards,
RGBDigit.com/shop and Coen.
--------------------------------------------------------------------------------------------------
12-9-2015
Following the successful Makerfaire 2015 in Eindhoven NL we have started a RGBDigit webshop.
In the shop you can find the RGBDigits and his supporting products (Arduino schield) who have come from the project
and there will be an interesting early bird discount.
The main goal of the project is to allow users to experience a lot of fun in using our RGBDigits, just like me
And to raise some funds for the next step in the project, namely scaling up the production and starting a kickstarter project
-------------------------------------------------------------------------------------------------------------
12-1-2015
Description of my 1" RGBDigit ARDUINO UNO/Micro project.

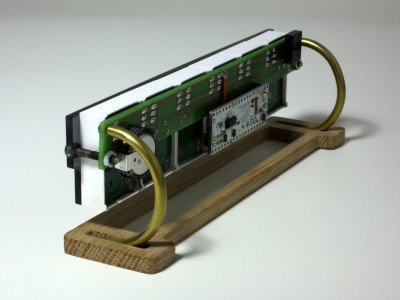

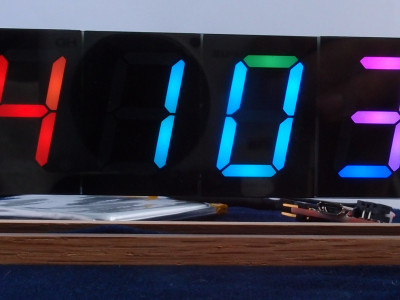

Always wanted to work with a multicolor serial 7segment display. In this project you can read all about the development of my Arduino Micro / UNO controlled 1" RGBDigit. The result is a multifunctional 4x 1" RGBdigit Arduino UNO schield and a 6x 1" RGBDigit Arduino Micro coltrolled backbone board both with a very accurate DS3231 clock.
----------------------------------------------------------------------------------------------------

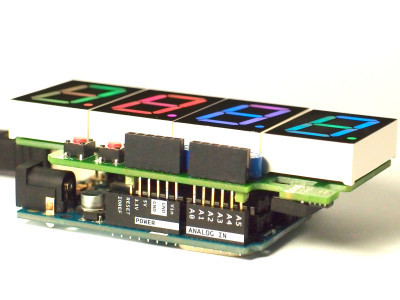

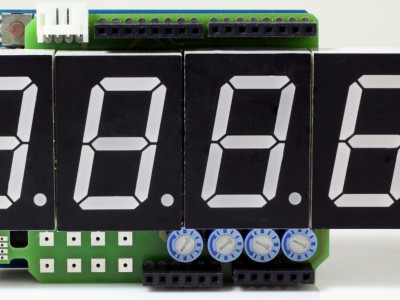

The first 130 RGBDigits and the RGBDigit UNO Shield are ready see photo's
Shield side http://rgbdigit.com/images/Shield_side.jpg
Shield front http://rgbdigit.com/images/Shield_front.jpg
Shield rear http://rgbdigit.com/images/Shield_rear.jpg

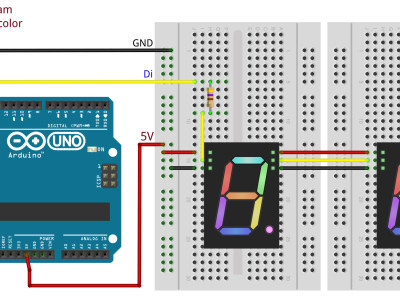

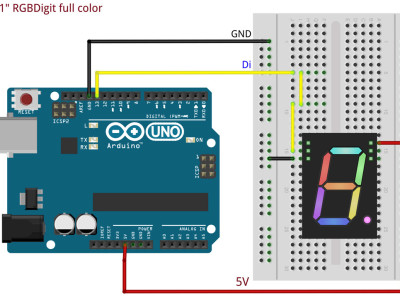

Arduino UNO RGBDigit on breadboard
http://www.elektor-labs.com/sites/default/files/RGBDigit_V10_2digits_0.jpg
1" RGBDigit datasheet
http://www.elektor-labs.com/sites/default/files/RGBDigit_datasheet_V2.02.pdf
RGBDgit shield disciption
http://www.elektor-labs.com/sites/default/files/Projectdescription%20Shield%20V5_03%20ENG.pdf
--------------------------------------------------------------------------------------------------
