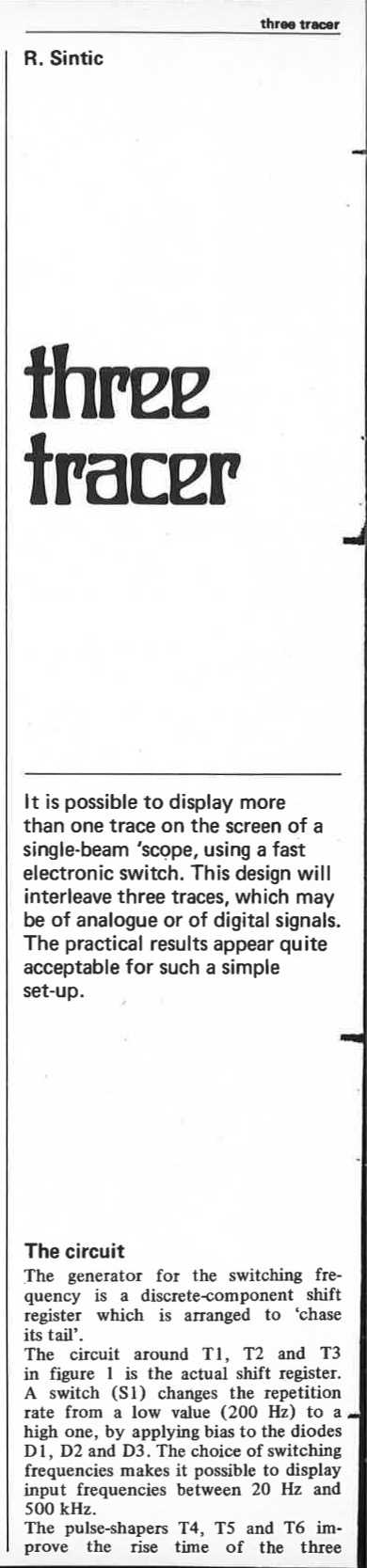

It is possible to display more than one trace on the screen of a single-beam `scqpe, using a fast electronic switch. This design will interleave three traces, which may be of analogue or of digital signals. The practical results appear quite acceptable for such a simple set-up
