The Elektor connection - a link between the Junior and interface board

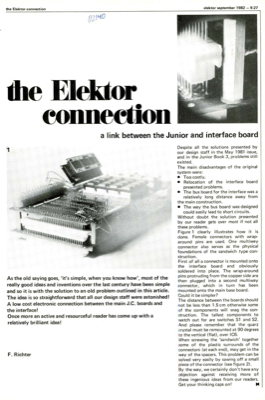

the Elektor connection elektor september 1982 — 9-27 01,40 the Elebor connection a link between the Junior and interface board As the old saying goes, "it"s simple, when you know how", most of the really good ideas and inventions over the last century have been simple and so it is with the solution to an old problem outlined in this article. The idea is so straightforward that all our design staff were astonished! A low cost electronic connection between the main J.C. boards and the interface! Once more an active and resourceful reader has come up with a relatively brilliant idea! F. Richter Despite all the solutions presented by our design staff in the May 1981 issue, and in the Junior Book 3, problems still existed. The main disadvantages of the original system were: • Too costly. • Relocation of the interface board presented problems. • The bus board for the interface was a relatively long distance away from the main construction. • The way the bus board was designed ...
