Rgb-To-Cvbs Converter Rfk7000

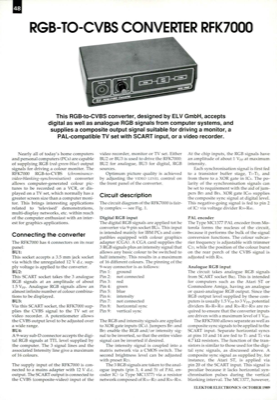

48 RGB-TO-CVBS CONVERTER RFK7000 This RGB-to-CVBS converter, designed by ELV GmbH, accepts digital as well as analogue RGB signals from computer systems, and supplies a composite output signal suitable for driving a monitor, a PAL-compatible TV set with SCART input, or a video recorder. Nearly all of today"s home computers and personal computers (PCs) are capable of supplying RGB (red-green-blue) output signals for driving a colour monitor. The RFK7000 RGB-to-CVBS (chrominance- video-blanking-synchronisation) converter allows computer-generated colour pic- tures to be recorded on a VCR, or dis- played on a TV set, which normally has a greater screen size than a computer moni- tor. This brings interesting applications related to "televised" demonstrations, multi-display networks, etc. within reach of the computer enthusiast with an inter- est for graphics applications. Connecting the converter The RFK7000 has 4 connectors on its rear panel: BU1: This socket accepts a 3.5 mm jack so...
