Elektor AVRprog

Simple AVR universal programmer with USB

Elektor AVRprog
Elektor AVRprog
Two events triggered the conception of this AVR programmer: the feedback received on USBprog from Elektor, October 2007 and a series of articles started last month around our ATM18 project. The outcome is a plug-and-play AVRISP mk2-compatible USB programmer for AVR controllers!
Log in here as a subscriber to read the article.

This is a MEMBER ONLY article. You need a subscription to read this article.

Benefits of a subscription
  • Unlimited access to online Member Only articles
  • 3 new editions Elektor Magazine (digital)
  • More than 5000 Gerber files
  • 20% member discount on e-books (at elektor.com)
  • 10% member discount on Products (at elektor.com)
View the offers
Available from €5.33 per month.
What is Elektor Exclusive?

Materials

Component list

Resistors

R1,R2 = 10kΩ, SMD 0603

R3 = 1MΩ, SMD 0603

R4 = 1kΩ5, SMD 0603

R5,R6 = 274Ω, SMD 0603

Capacitors

C1,C2 = 15pF, SMD 0603

C4,C6,C8,C9,C10 = 100nF, SMD 0603

C5,C7 = 1µF, SMD 0603

Semiconductors

IC1 = Atmega16-16MU, MLF44

IC2 = USBN9604SLB

D1 = LED red, SMD 0603

D1 = LED green, SMD 0603

Miscellaneous

Y1 = 24 MHz quartz crystal, HC49/4 case

K3 = Mini USB socket type A-USBB-M5/SMD

JP2 = 6-way boxheader

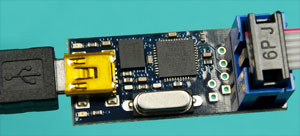

Ready-assembled and tested module, incl. USB and ISP cable, order code 080083-71
