USB Tilt Sensor

(Summer Circuits 2010 article)

USB Tilt Sensor
USB Tilt Sensor

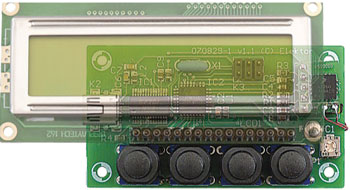

A tilt sensor is a very versatile device: for example, it can be used as a (game) controller or as an alarm sensor to protect valuables. The circuit described here uses the same sensor as we used in our two-axis accelerometer project: Freescale MMA7260Q

Log in here as a subscriber to read the article.

This is a MEMBER ONLY article. You need a subscription to read this article.

Benefits of a subscription
  • Unlimited access to online Member Only articles
  • 3 new editions Elektor Magazine (digital)
  • More than 5000 Gerber files
  • 20% member discount on e-books (at elektor.com)
  • 10% member discount on Products (at elektor.com)
View the offers
Available from €5.33 per month.
What is Elektor Exclusive?

Materials

Gerber file

CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.

Elektor recommends the Elektor PCB Service service from its business partner Eurocircuits or AISLER as the best services for its own prototypes and volume production.

The use of our Gerber files is provided under a modified Creative Commons license. Creative Commons offers authors, scientists, educators and other creatives the freedom to handle their copyright in a more free way without losing their ownership.

PCB

Component list

Resistors
R1,R2,R3 = 1kOhm (0805)
R4 = 47Ohm (0805)
P1 = 5kOhm trimpot (SMT)

Capacitors
C1 = 1µF 50V (0405)
C2–C5,C7,C8,C9 = 100nF (0805)
C6 = 10nF (0805)

Inducotors
L1,K2,L3 = 10µH (ferrite bead 330Ohm, 0805)

Semiconductors
IC1 = FT232RL (SSOP-28)
IC2 = ATmega8-16AU (TQFP-32), programmed, order code 070829-41
MMA7260QT on carrier board, order code 090645-91

Miscellaneous
LCD1 = Displaytech 162A
8-way SIL socket strip for LCD1, lead pitch 0.1 inch (2.54mm)
K1 = 2 pcs 4-pin pinheader, lead pitch 0.1 inch (2.54mm)
K2 = Mini-USB socket, type B
K3 = 6-pin (2x3) pinheader, lead pitch 0.1 inch (2.54mm)
S1–S4 = pushbutton (through-hole)
X1 = 4MHz ceramic resonator with integrated capacitors (SIL-3)
PCB, order code 070829-1
