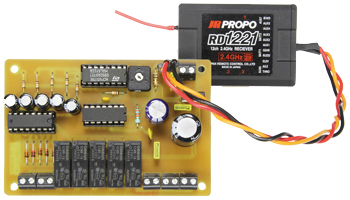

Radio Controlled Multi-Switch
Control 5 switches via 1 channel
Gerber file
CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.
Elektor recommends the Elektor PCB Service service from its business partner Eurocircuits or AISLER as the best services for its own prototypes and volume production.
The use of our Gerber files is provided under a modified Creative Commons license. Creative Commons offers authors, scientists, educators and other creatives the freedom to handle their copyright in a more free way without losing their ownership.
Components
The BOM (Bill of Materials) is the technically exhaustive listing of parts and other hardware items used to produce the working and tested prototype of any Elektor Labs project. The BOM file contains deeper information than the Component List published for the same project in Elektor Magazine. If required the BOM gets updated directly by our lab engineers. As a reader, you can download the list here.
Want to learn more about our BOM list? Read the BOM list article for extra information.
Component list
Resistors
R1 = 33kOhm
R2–R7 = 10kOhm
R8 = 0Ohm (jumper)
P1 = 10kOhm trimpot
Capacitors
C1 = 4.7nF, 0.1” pitch
C2 = 1nF, 0.1” pitch
C3–C7 = 47µF 50V, 0.1” pitch
C8,C9,C10 = 100nF, 0.2” pitch
C11 = 1000µF 50V, 7.5mm pitch
C12 = 470µF 50V, 0.2” pitch
Semiconductors
D1–D5 = 1N4148
IC1 = HEF4093BP
IC2 = CD4017BE
IC3 = ULN2003AN
IC4 = MC7805
Miscellaneous
K1–K6 = 2-way PCB terminal block, 3.5mm pitch
K7 = 3-pin pinheader, 0.1” pitch
RE1–RE5 = relay, SPST, 5V coil, 5A contact, e.g. Omron G5NB1A5DC
PCB, Elektor Store # 140088-1
