12-V LED Driver

lights up the dark nights

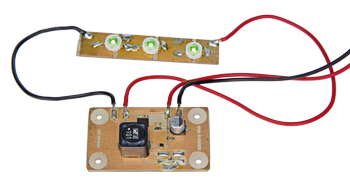

Supposing you’d want to bring some light into a boat or campervan during the evening you could connect a couple of 12-V incandescent lamps to the on-board battery. The disadvantage of this solution is that the battery can be drained quite quickly — incandescent lamps aren't exactly known for their energy efficiency. LED lamps fare much better in this respect, but the light fittings required for 12-volt operation are costly. So, the author set out to design a compact, but versatile driver that lets you use inexpensive 230 V LED lamps

This is a MEMBER ONLY article. You need a subscription to read this article.

Benefits of a subscription

Unlimited access to online Member Only articles
3 new editions Elektor Magazine (digital)
More than 5000 Gerber files
20% member discount on e-books (at elektor.com)
10% member discount on Products (at elektor.com)

View the offers
Available from €5.33 per month.

What is Elektor Exclusive?

Materials

www.idt.com/document/dst/zled7x30-datasheet

https://en.wikipedia.org/wiki/Ground_bounce

PCB PDF

Gerber file

CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.

Elektor recommends the Elektor PCB Service service from its business partner Eurocircuits or AISLER as the best services for its own prototypes and volume production.

The use of our Gerber files is provided under a modified Creative Commons license. Creative Commons offers authors, scientists, educators and other creatives the freedom to handle their copyright in a more free way without losing their ownership.

PCB

Download Gerber file: 150314-1_12VLEDdriver_V1_1.zip

Extra info / Update

* Powered from a 12-V battery
* Suitable for efficient LED lamps
* Configurable output current up to 350 mA
* Various dimming levels via the on/off switch

Component list

From the Store
150314-1 PCB, unpopulated
Component List
Resistors
R1,R2 = 1.2Ohm * (SMD 0805, 0.25W, 1%)
Capacitors
C1 = 47µF 25V, SMD 0805, aluminum electrolytic capacitor (Panasonic EEE-FT1E470AR)
C2,C3 = 1µF 50V, X7R, SMD 0805
Inductor
L1 = 100µH SMD, 3.1A / 0.11Ohm (Würth Elektronik 7447709101)
Semiconductors
D1 = NXP PMEG3010EJ, Schottky diode 30V 1A, SMD SOD-323F
IC1 = ZLED7730, LED driver, SMD SOP-8 (IDT, ZMDI) *
Miscellaneous
PCB 150314-1
* see text

Discussion (0 comments)

DH3KC 7 years ago

Hi Elektor team and all who are interested,

I am looking to buy a ZLED7530 but it looks at least very complicated and I could see that these parts are obsolate. Does some has an idea?

Michael

0 Comment(s)

DH3KC 7 years ago

Again me,

The circuit in "Bild 1" is wrong I guess. In the datasheet Dim1 and Dim 2 are switched to GND and not like drawn to the LED+ output.
Have fun!
Michael
