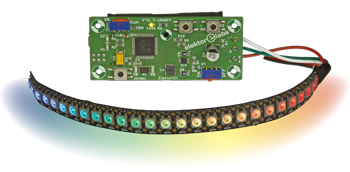

Wearable LED Controller
light effects for the disco
In the animal world, the males of the species don't have it easy finding a partner – they sometimes have to prove in fierce (mock) fights with competitors who is the strongest, or need to show their prettiest side and/or need to sing as beautiful as possible… In comparison, Homo Sapiens, and then particularly Homo Electronicus, has it much easier these days – he calls in the support of his semiconductor friends.
Materials
Gerber file
CAM/CAD data for the PCB referred to in this article is available as a Gerber file. Elektor GREEN and GOLD members can exclusively download these files for free as part of their membership. Gerber files allow a PCB to be produced on an appropriate device available locally, or through an online PCB manufacturing service.
Elektor recommends the Elektor PCB Service service from its business partner Eurocircuits or AISLER as the best services for its own prototypes and volume production.
The use of our Gerber files is provided under a modified Creative Commons license. Creative Commons offers authors, scientists, educators and other creatives the freedom to handle their copyright in a more free way without losing their ownership.
PCB
Component list
Component list
Resistors (all SMD0805, 5%, 0.1 W)
R1,R2 = 22 Ohm
R3,R5,R9,R10 = 10 kOhm
R4 = 330 Ohm
R6 = 220 Ohm
R7 = 680 kOhm
R8 = 220 kOhm
Capacitors
C1,C2 = 47 pF, 50 V,C0G/NP0, SMD0805
C3 = 100 µF/16 V, tantalum, SMD2312
C4 = 100 nF, 50 V, X7R, SMD0805
C5,C6 = 22 pF, 50 V, C0G/NP0, SMD0805
C7 = 470 µF/10 V, 0,16 Ohm, SMD electrolytic
C8,C9 = 10 µF/16 V, tantalum, SMD1206
C10 = 1 µF, 50 V, ±10%, X5R, MC Series
Inductors
L1 = 4.7 µH, 1,72 A, 1,65 A, shielded, 0.082 Ohm, WE-TPC Series
Semiconductors
IC1 = Atmega32U4-AUR, 16 MHz, 32 kB, 25 kB, 44-pin
IC2 = MCP1642B-ADJI/MS, 650mV-5.5V in, 1.8V-5,5V out, 0.8 A out
LED1 = LED low power, green, SMD, 20 mA, 2.1 V
Miscellaneous
X1 = crystal 16 MHz, 30 ppm, 18 pF, SMD 5 x 3,2 mm
S1,S2,S3 = pushbutton, not illuminated, circuit board mount
K1 = micro-USB connector type B, USB 2.0, female
K2 = 3-way circuit board terminal block, pitch 0.2”
K3 = pin header 6-way, 2 rows, pitch 0.1”
S4,S5 = slide switch SPDT, on-on, through-hole
BAT = battery holder, AA x 2, through-hole
Resistors (all SMD0805, 5%, 0.1 W)
R1,R2 = 22 Ohm
R3,R5,R9,R10 = 10 kOhm
R4 = 330 Ohm
R6 = 220 Ohm
R7 = 680 kOhm
R8 = 220 kOhm
Capacitors
C1,C2 = 47 pF, 50 V,C0G/NP0, SMD0805
C3 = 100 µF/16 V, tantalum, SMD2312
C4 = 100 nF, 50 V, X7R, SMD0805
C5,C6 = 22 pF, 50 V, C0G/NP0, SMD0805
C7 = 470 µF/10 V, 0,16 Ohm, SMD electrolytic
C8,C9 = 10 µF/16 V, tantalum, SMD1206
C10 = 1 µF, 50 V, ±10%, X5R, MC Series
Inductors
L1 = 4.7 µH, 1,72 A, 1,65 A, shielded, 0.082 Ohm, WE-TPC Series
Semiconductors
IC1 = Atmega32U4-AUR, 16 MHz, 32 kB, 25 kB, 44-pin
IC2 = MCP1642B-ADJI/MS, 650mV-5.5V in, 1.8V-5,5V out, 0.8 A out
LED1 = LED low power, green, SMD, 20 mA, 2.1 V
Miscellaneous
X1 = crystal 16 MHz, 30 ppm, 18 pF, SMD 5 x 3,2 mm
S1,S2,S3 = pushbutton, not illuminated, circuit board mount
K1 = micro-USB connector type B, USB 2.0, female
K2 = 3-way circuit board terminal block, pitch 0.2”
K3 = pin header 6-way, 2 rows, pitch 0.1”
S4,S5 = slide switch SPDT, on-on, through-hole
BAT = battery holder, AA x 2, through-hole
