Circuit: The Mostronome, A 1975 Metronome That Still Inspires

For engineers and DIY electronics enthusiasts, revisiting a classic circuit can be a fascinating exercise. The Mostronome, an innovative metronome Elektor project from 1975, stands out as a clever implementation of discrete electronics.

Unlike trad metronomes that produce a mechanical tap, the Mostronome project generates a brief, pleasant whistle. Let’s take a look at how the vintage circuit works and why it remains an interesting project to the Elektor team today.

A Metronome with a Twist

The metronome remains a vital tool for musicians, providing a steady beat that helps users maintain rhythmic precision. From mechanical ticks to modern digital interfaces, these devices guide musicians in practicing and perfecting their timing across various musical genres.

Engineered to deliver precise auditory signals and cues, the Mostronome offers a distinctive sound profile ideal for musical precision and time-sensitive tasks. Its creative design leverages electronic components like logic gates and transistors to generate a whistle-like tone, departing from the typical mechanical timing devices.

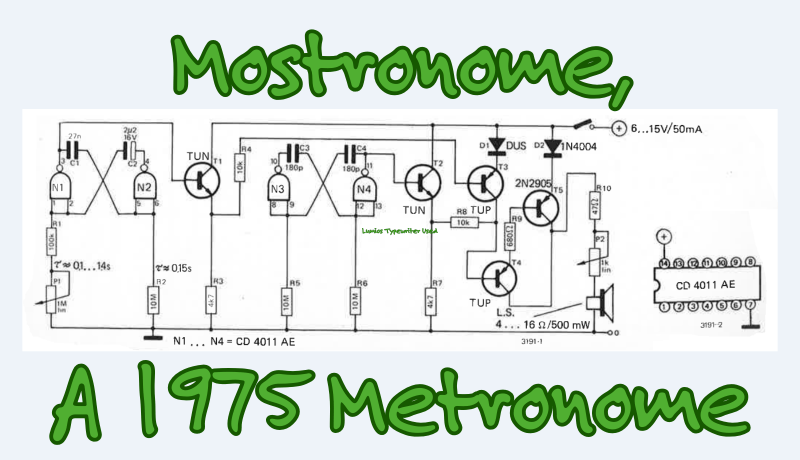

  The Mostronome’s operation is based on a simple combination of logic gates and transistors:


• Timing Control: The repetition frequency is generated by two logic gates (N1 and N2), forming a clock circuit. This frequency can be adjusted using potentiometer P1, allowing the user to set a tempo between approximately 40 beats per minute and 10 beats per second.
• Signal Buffering: The clock signal from the gates drives transistor T1, which acts as a buffer stage. This ensures that the timing signal remains stable and properly conditioned for the next stage.
• Gated Oscillator: Gates N3 and N4 form a square-wave oscillator that runs at about 500 Hz, creating the whistle sound. However, this oscillator is not continuously active: it is switched on and off by transistor T3, which is controlled by the timing circuit.
• Sound Generation: When activated, the oscillator’s output switches transistor T4 via transistor T2 and a resistor. The result is a short burst of sound (approximately 0.15 seconds) at the emitter of T4, which is then amplified by transistor T5.
• Audio Output: The amplified whistle signal drives a connected loudspeaker (4- to 16-Ω impedance), with volume adjustable via potentiometer P2. Thanks to its efficient design, the Mostronome consumes minimal power, making a simple 6-V battery sufficient for operation.

Why Is The Project Still Relevant?

While modern electronics projects and apps have moved toward microcontrollers and digital solutions, the Mostronome remains a fascinating example of discrete component design. Here’s why it continues to interest Elektor readers:


• Pure Hardware Logic: Without microcontrollers, it features just logic gates and transistors! This makes it a great learning project for those who want to understand fundamental circuit behavior.
• Vintage Electronics Charm: Exploring older circuit designs gives insight into how engineers solved problems before microcontrollers and software-based solutions became dominant.
• Potential for Modern Adaptation: You can adapt this Elektor circuit with newer components while keeping the original design principles intact. For instance, you could use a 555 timer or an ATtiny85 microcontroller to replicate the functionality with added flexibility.

The Original Project

Recreating the Elektor Mostronome could be an engaging hands-on project for anyone interested in retro electronics. Whether you build it exactly as it was designed in ’75 or modify it using today's components, this project serves as a reminder of the ingenuity found in classic circuits. Would you build the Mostronome as it was originally designed, or would you give it a modern twist? Read the original article, which you can access for free during the two weeks following the publication of this post. If and when you start a project, be sure to share your progress on the Elektor Labs platform!
