Dimmable Outdoor Lighting
Customizable brightness settings for 12-V LED lamps
One bright day last summer our reader Andreas Meyer installed a patio lighting system, using four 3-watt LED spots. The result was far too harsh and bright, however. As nobody expects to wear sunglasses when sitting out on the patio on warm summer evenings, the new lights saw little use. What he needed was a dimming device that would reduce the brightness soothingly and provide greater luxury and convenience…
Extra info / Update
* Control of four LED lamps
* Two-stage dimming of low-voltage LED lamps
* Smooth transition between brightness levels
* Dimming level controlled by motion detector
* Two-stage dimming of low-voltage LED lamps
* Smooth transition between brightness levels
* Dimming level controlled by motion detector
Component list
Component List
Resistors
(5%, 0.25W, 250V)
R1–R4 = 100Ohm
R5,R6,R7 = 10kOhm
R7 to R10 = 56kOhm *
Capacitors
C1,C2 = 1µF, 50 V, foil, 0.2’’ pitch
C3,C4 = 100nF, 50V, foil, 0.2’’ pitch
C5 = 4.7µF, 35V, electrolytic, upright 5x11mm, 2mm pitch
Semiconductors
D1 = 1N4007
T1–T4 = IRLZ34NPBF
IC1 = PIC12F1840-I/P, programmed *
IC2 = LP2950ACZ-5.0
IC3 = HCPL-814-000E, optoisolator
Miscellaneous
5 pcs 2-way screw terminal block, PCB mount, 0.2’’ pitch
1 pc 2-way screw terminal block, PCB mount, 0.3’’ pitch
2 pcs 6-pin pinheader, SIL, 0.1’’ pitch
Fuseholder, PCB mount, e.g. Schurter 0031.8201
Fuse 1A, 20 x 5 mm *
Pushbutton, PCB mount, make contact, 6 x 6 mm

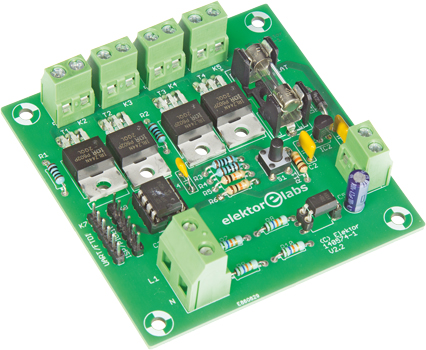

PCB 140574-1 V2.2 *
8-way IC socket, DIP, for IC1
* see text
Resistors
(5%, 0.25W, 250V)
R1–R4 = 100Ohm
R5,R6,R7 = 10kOhm
R7 to R10 = 56kOhm *
Capacitors
C1,C2 = 1µF, 50 V, foil, 0.2’’ pitch
C3,C4 = 100nF, 50V, foil, 0.2’’ pitch
C5 = 4.7µF, 35V, electrolytic, upright 5x11mm, 2mm pitch
Semiconductors
D1 = 1N4007
T1–T4 = IRLZ34NPBF
IC1 = PIC12F1840-I/P, programmed *
IC2 = LP2950ACZ-5.0
IC3 = HCPL-814-000E, optoisolator
Miscellaneous
5 pcs 2-way screw terminal block, PCB mount, 0.2’’ pitch
1 pc 2-way screw terminal block, PCB mount, 0.3’’ pitch
2 pcs 6-pin pinheader, SIL, 0.1’’ pitch
Fuseholder, PCB mount, e.g. Schurter 0031.8201
Fuse 1A, 20 x 5 mm *
Pushbutton, PCB mount, make contact, 6 x 6 mm
PCB 140574-1 V2.2 *
8-way IC socket, DIP, for IC1
* see text
