Mouser Now Stocking Cypress FM4 S6E2G-Series MCUs, Designed for Industry 4.0 and IoT Devices
October 17, 2016
on
on

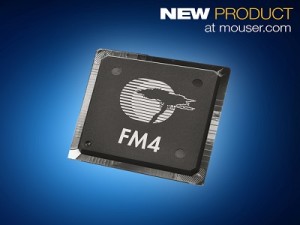

Mouser Electronics, Inc., the industry’s leading New Product Introduction (NPI) distributor with the widest selection of semiconductors and electronic components, is now stocking the FM4 S6E2G-Series microcontrollers from Cypress Semiconductor. Designed for industrial automation and metering applications, the 32-bit S6E2G-Series offers highly integrated hardware-based features and standards-compliant firmware libraries that simplify functional safety compliance, provides superior performance needed for Industry 4.0 applications, and delivers the scalability to minimize design costs and accelerate time-to-market.
The Cypress FM4 S6E2G-Series microcontrollers, available from Mouser Electronics, are based on a 608 CoreMark®, 180-MHz ARM® Cortex®-M4 CPU core. The S6E2G-Series comes equipped with up to 1 MByte of on-chip flash memory and up to 192 kBytes of SRAM with a 16-kByte flash accelerator. The microcontrollers provide Error-Correcting Code (ECC) support, and include a hardware watchdog timer (WDT), low-voltage detect, and clock supervisor blocks for safety-critical applications. The S6E2G-Series also supports a digital and analog subsystem that features a variety of high-end peripherals and communication modules, including IEEE 1588Ethernet, CAN, a hardware-based Crypto Assist Module, serial communication interfaces (USB, UART, CSIO (SPI), I²C, LIN), as well as and up to 153 general-purpose inputs and outputs (GPIOs), advanced control peripherals, 12-bit analog-to-digital converters (ADCs), and a Quadrature Position/Revolution Counter.
The S6E2G-Series is supported by FM4-176L-S6E2GM Pioneer Kit, which enables rapid development of high-performance embedded systems using an Arduino Uno-compatible interface to connect to Arduino shields for low-cost hardware expansion. The Pioneer board's peripherals include an accelerometer and phototransistor, a stereo codec, and multi-color LEDs, plus a microphone jack, line-in jack, and headphone jack. For more information on the FM4-176L-S6E2GM Pioneer Kit, watch the Mouser Presents video: https://www.youtube.com/watch?v=IZz4taxe2Mc.
Cypress’ FM4 S6E2G-Series microcontrollers are available now at Mouser Electronics in both 144-pin and 176-pin LQFP packages, and operate over a temperature range of -40 to +105 degrees Celsius. The devices are ideally-suited for a broad array of motor control, factory automation, industrial, home appliance and Internet of Things (IoT) applications.
To learn more about the Cypress S6E2G-Series microcontrollers, visit http://www.mouser.com/new/Cypress-Semiconductor/cypress-fm4-s6e2g-controllers/.
The Cypress FM4 S6E2G-Series microcontrollers, available from Mouser Electronics, are based on a 608 CoreMark®, 180-MHz ARM® Cortex®-M4 CPU core. The S6E2G-Series comes equipped with up to 1 MByte of on-chip flash memory and up to 192 kBytes of SRAM with a 16-kByte flash accelerator. The microcontrollers provide Error-Correcting Code (ECC) support, and include a hardware watchdog timer (WDT), low-voltage detect, and clock supervisor blocks for safety-critical applications. The S6E2G-Series also supports a digital and analog subsystem that features a variety of high-end peripherals and communication modules, including IEEE 1588Ethernet, CAN, a hardware-based Crypto Assist Module, serial communication interfaces (USB, UART, CSIO (SPI), I²C, LIN), as well as and up to 153 general-purpose inputs and outputs (GPIOs), advanced control peripherals, 12-bit analog-to-digital converters (ADCs), and a Quadrature Position/Revolution Counter.
The S6E2G-Series is supported by FM4-176L-S6E2GM Pioneer Kit, which enables rapid development of high-performance embedded systems using an Arduino Uno-compatible interface to connect to Arduino shields for low-cost hardware expansion. The Pioneer board's peripherals include an accelerometer and phototransistor, a stereo codec, and multi-color LEDs, plus a microphone jack, line-in jack, and headphone jack. For more information on the FM4-176L-S6E2GM Pioneer Kit, watch the Mouser Presents video: https://www.youtube.com/watch?v=IZz4taxe2Mc.
Cypress’ FM4 S6E2G-Series microcontrollers are available now at Mouser Electronics in both 144-pin and 176-pin LQFP packages, and operate over a temperature range of -40 to +105 degrees Celsius. The devices are ideally-suited for a broad array of motor control, factory automation, industrial, home appliance and Internet of Things (IoT) applications.
To learn more about the Cypress S6E2G-Series microcontrollers, visit http://www.mouser.com/new/Cypress-Semiconductor/cypress-fm4-s6e2g-controllers/.
